2m Amateur Radio Repeater

GB3TY

We run our own amateur radio repeater on campus from our Tillingbourne ground station, serving the Guildford area and afar!

Repeater Location

  • Locator: IO91QF
  • NGR: SU9860250117
  • Located at the Tillingbourne Satellite Ground Station

Frequency Details

  • TX: 144.9750 MHz
  • RX: 145.5750 MHz
  • Offset: -0.6 MHz
  • CTCSS: 88.5 Hz
  • BW: 12.5 kHz

Equipment

  • SIMOCO PRF1050 VHF Repeater
  • SvxLink on a Raspberry Pi 3 as controller
  • ERP: 5W (7dBW)
  • Vertically Polarised
  • Echolink: GB3TY-R, node ID 283529

Events

  • 7pm Thursday WEEKLY NET (during semester time only)!
  • More events coming soon during semester time!

GB3TY also now supports Echolink! Join us using GB3TY-R, or connect using node ID: 283529

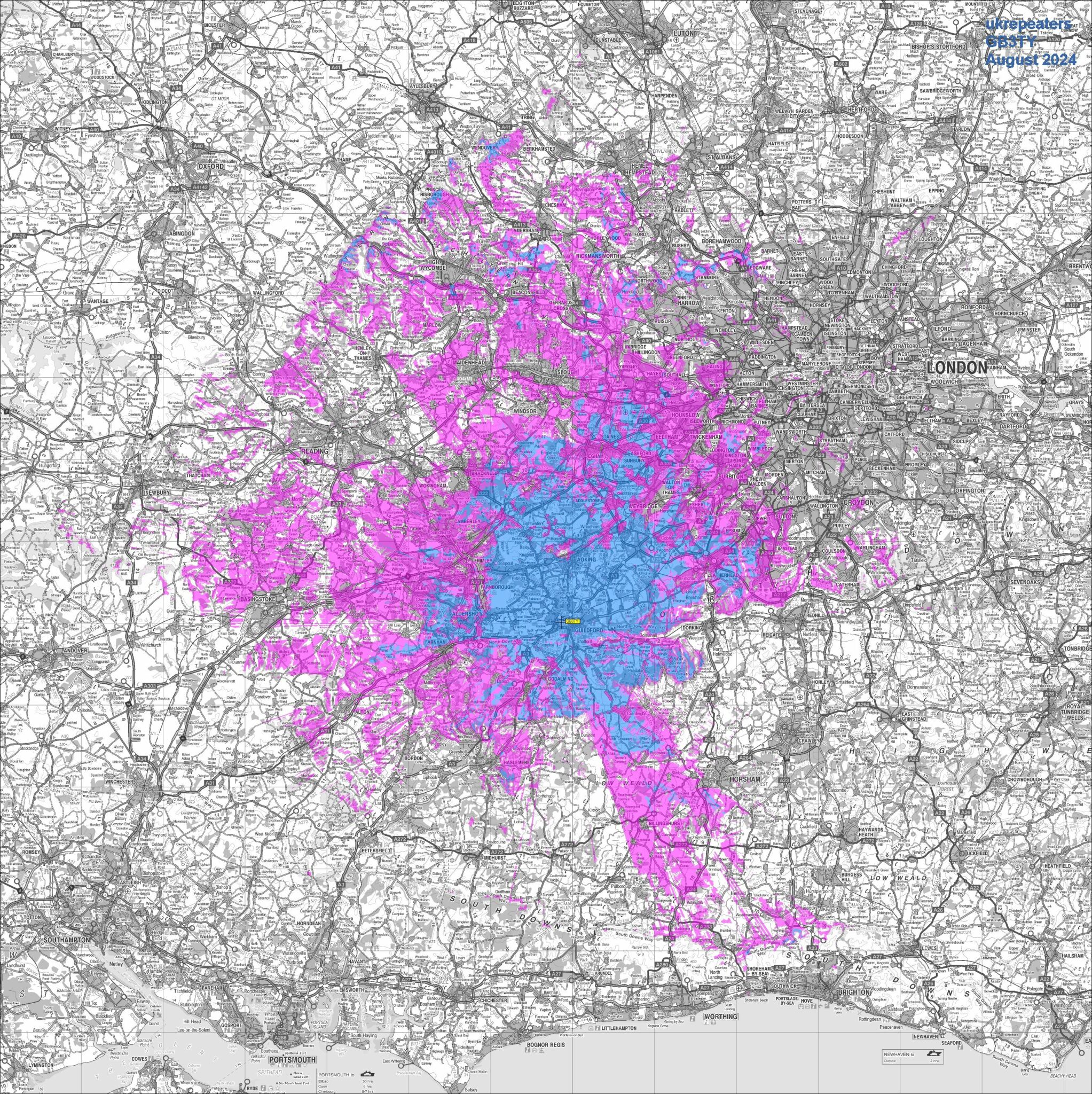

(Click the coverage map above to view full image) ⬆️

DTMF Commands

GB3TY has a few useful DTMF codes, which are detailed below.

METAR INFO

METAR (METeorological Aerordrome Report), is a standard message providing current weather conditions at an airport for pilots, usually issued every 30 mins, and is critical to flight safety. While normally used by pilots, it can still be useful to any amateur radio enthusiast for up-to-date weather.

  1. Use 5# to enter METAR INFO mode.
  2. Choose which airport to receive from the list below.
  3. 1# - EGLF, Farnborough Airport
  4. 2# - EGLL, London Heathrow Airport
  5. 3# - EGKK, Gatwick Airport
  6. After listening, use # to exit METAR INFO mode.

ECHOLINK

Echolink is a Voice over IP (VoIP) system that allows amateur radio operators to communicate over the internet. It bridges the gap between the internet and RF, and allows users to access repeaters through their own phone/laptops. It can also be used to link distant repeaters, so users can connect with distant operators over RF, bridged through the internet.

  1. Use 2# to enter METAR INFO mode.
  2. Dial the Echolink node using the following format:
  3. <NODE ID># for example: 9999# would dial the node 9999, which is the Echolink Test node.
  4. To Disconnect from the connected node, use # to return to Echolink mode, where another node can be dialled.
  5. To exit Echolink entirely, use #.
